The problem

• Mastery means every scale in all 12 keys — forwards, backwards, by ear and by eye.
• The material to do that is scattered, static, or paywalled: a PDF you can't hear, an app you can't print, a book locked to one instrument.
• Students need it gentle and visual; pros need it fast and complete. Most resources serve one, not both.
• And you can't hear a printed page — or print most apps.

Why I'm building this

I want one tool that helps a player — from a first-year student to a gigging pro — internalize the sound and shape of every scale, in every key. Free, open, and useful at the music stand or on a phone. As a pianist myself, I started by creating a tool that would be useful for my own piano practice.

• For musicians at all levels — the same material scales from beginner drills to advanced modes.
• See it and hear it — notation you can read and play back.
• Free & open for all, hence the ∀ symbol from mathematical logic — no login, no account, no paywall. MIT-licensed.

If you find it useful, consider sponsoring me on GitHub or giving to Computer Science at Loyola University Chicago — links are in the project README.

Principles

• One source of truth. The music theory lives in one place; everything else is generated.
• Two deliverables, one model. A printable book and an interactive web app.
• All keys, all scales. 14 key spellings × 26 scales = 364 ready charts.
• Client-only. The app runs entirely in the browser — no server, no tracking.
• A living work. As an active music student and professor, I am committed to maintaining and improving this app!

One model → two outputs

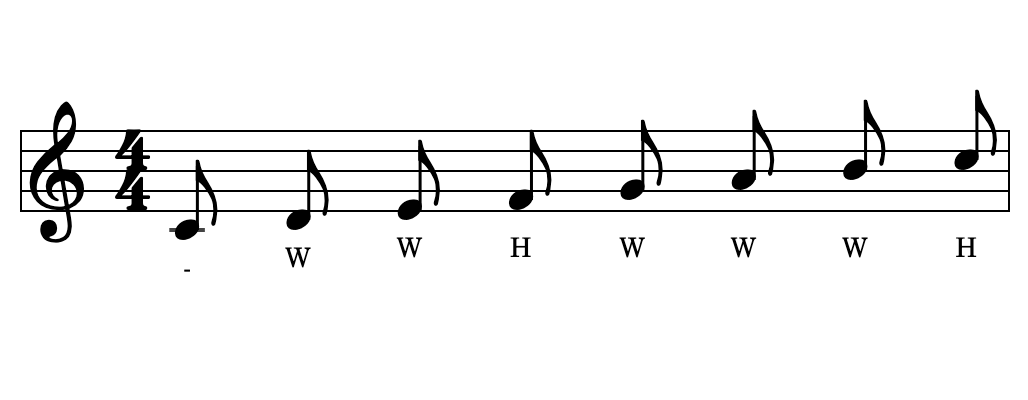

Same C-major data, two renderers. Nothing is re-typed by hand.

Architecture

No music theory is duplicated downstream — the web app is a renderer/player over resolved data.

The data model

One row drives notation, audio, and the app — pitch classes 0–11, step labels H·W·W+H·m3·M3 (W=Whole Tone, H=Half Tone/Semitone, W+H=Whole+Semitone, m3=Minor Third, M3=Major Third)

All scales are written in C and then transposed to all other keys.

# generator.py
SCALES = [
    ("Major (Ionian)", ["C","D","E","F","G","A","B","C5"],
        ["W","W","H","W","W","W","H"], "Cmaj7"),

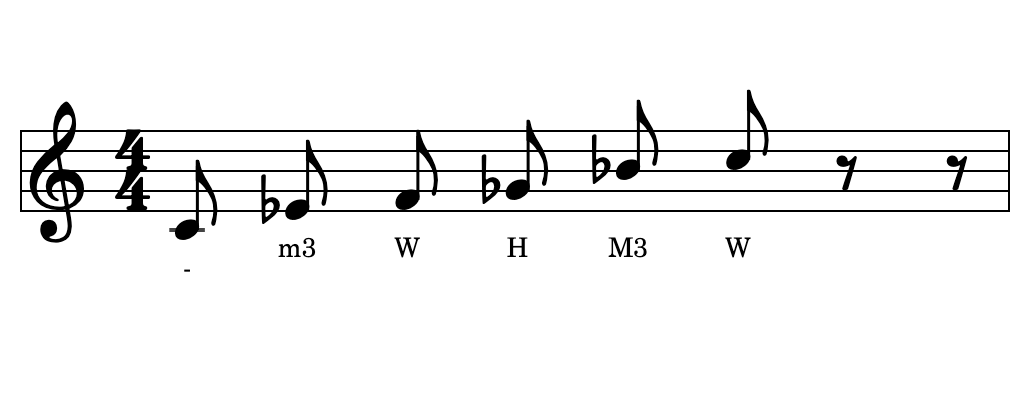

    ("Minor Pentatonic b5", ["C","Eb","F","Gb","Bb","C5"],
        ["m3","W","H","M3","W"], "Cm7(b5)"),   # M3 = 4 semitones — not m3
]

… and the model catches real bugs

• Gb → Bb is 4 semitones — a major third.
• Fix flows everywhere at once: book, MIDI, and app.

The JSON contract

python -m jazz_scales.export_json resolves every (key, scale) — the boundary between Python and TypeScript.

{
  "key": "C", "scale": "Major (Ionian)", "chord": "Cmaj7",
  "intervals": ["W","W","H","W","W","W","H"],
  "notes": [
    { "name": "C", "octave": 4, "midi": 60, "sharp_name": "C", "flat_name": "C" },
    { "name": "D", "octave": 4, "midi": 62, "sharp_name": "D", "flat_name": "D" }
  ]
}

Note names and MIDI and enharmonic spellings — so the renderer never does theory.

Notation in the browser

• VexFlow treble stave, 4/4, padded to whole measures.
• Interval labels under each note — or scale-degree numbers in the interval patterns.
• Responsive SVG — crisp at any width, phones included.

svg.setAttribute("viewBox", `0 0 ${w} ${h}`);
svg.style.width = "100%";       // must be .style:
svg.style.maxWidth = `${w}px`;  // VexFlow's inline
                                // style beats attributes

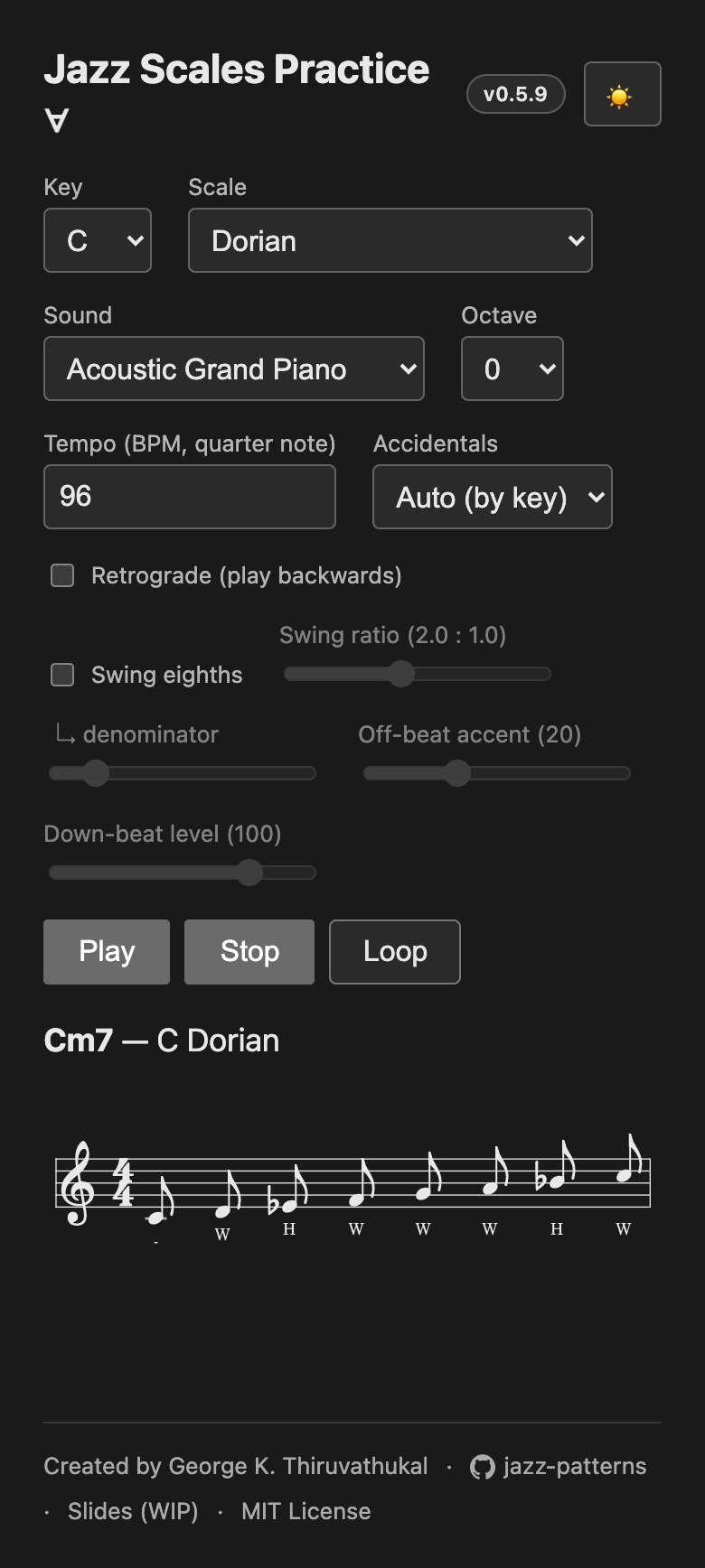

Hear it — playback & interaction

• smplr Sequencer — real transport: play · pause · stop · loop.
• Instruments — keys, mallets, guitar, bass, horns & winds, and a Salamander grand piano.
• Octave — a sensible default per instrument; nudge ±3 (playback only).
• Playing-note highlight — the score follows the sound.

All "feel" controls change the audio only — never the printed notes. (Interval patterns are next.)

Play it: jazz-scales.gkt.sh

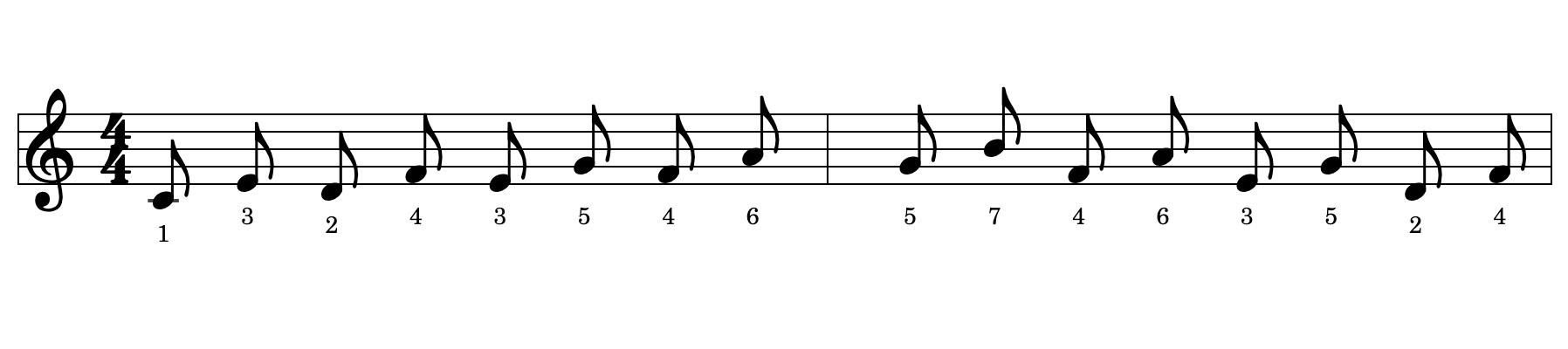

Intervals — hear the shapes

Play any scale in diatonic intervals — its own notes, never chromatic. Each pattern is a two-measure phrase that loops back to the tonic, and the staff re-renders with scale-degree numbers so you see the interval as you hear it.

Steps · Seconds · Thirds · Fourths · Fifths · Sixths · Sevenths

Install it — and take it offline

• Installable PWA — add it to your phone's home screen or your desktop dock; it opens in its own window.
• Works offline — the app shell and notation are precached on first load, so it runs with no connection.
• Download only the sounds you want — an Offline-sounds picker caches instruments on demand (including a sampled Salamander grand piano), so playback works on a plane or at a gig with no signal.
• Still no server, no account, no tracking — everything lives in your browser.

Print it — the practice book

• Every key × every scale — forward and retrograde.
• By-key and by-scale chapters, with a cover and table of contents.
• Engraved with LilyPond — real typesetting, not screenshots.
• One source model — fix once; book, MIDI, and app stay in sync.

Free book (PDF): github.com/gkthiruvathukal/jazz-patterns/releases/latest

Swing & feel

Straight eighths split the beat 50/50. Swing pushes the "and" later and accents it.

// off-beat lands at ratio/(ratio+1) of the beat; long-short + velocity accent
const f  = swing ? swingRatio / (swingRatio + 1) : 0.5;   // 2:1 → 0.667
const at = beat * PPQ + (offbeat ? Math.round(f * PPQ) : 0);
const velocity = offbeat ? Math.min(127, downbeat + accent) : downbeat;

• Ratio chosen from a Feel dropdown of presets (after Iverson): Straight 1:1, 3:2, 2:1, 3:1, plus the near-straight 4:3 / 5:4.
• Example: the off-beat "and" lands at 67% of the beat for 2:1, 60% for 3:2, 56% for 5:4 ("barely there").
• Off-beat accent + down-beat level = a backbeat you can dial in.

Engineering notes

• Stop didn't stop. Notes scheduled ahead sit queued; stopping sounding voices ≠ clearing the queue. Fixed by driving everything through the sequencer's transport.
• Responsive SVG. setAttribute("width","100%") did nothing — VexFlow sets an inline style, and inline style beats presentation attributes. Set .style instead.
• Dark mode. The note-highlight is a DOM overlay outside the SVG's invert() filter, so its color stays put.

Design & access

• Less is more — one screen-first type system, one accent color, lots of air.
• Dark / light, responsive, keyboard-reachable controls.
• No server, no login, no tracking — a static bundle on GitHub Pages.
• Open — MIT-licensed; the Python model is the single source of truth.
• Mobile-web first — installable as a PWA today (home screen / dock, offline-capable); native app-store builds may follow, but the open web reaches the widest audience.
